Coping
[How to Search/Download]
1. All coping data is displayed.
2. You can search by product number or name.
3. From the displayed data, click the checkbox of the product data you want to download.
4. Select the data type from the options shown in the right-hand box and click the [Download] button.
When using coping as a roof conductor system, select the NKLA Type for coping widths between 175 and 250 and the NKLE Type for coping with a width of 275 or over.
[System Requirements]
We recommend using Chrome, Internet Explorer 11 or later, or Microsoft Edge.
[Copyright and Disclaimer]
All CAD data here is the property of UACJ Metal Components Corporation.
For more information, see here.
NKLE135
L=4,000
L=3,000
NKLE150
L=4,000
L=3,000
NKLE175
L=4,000
L=3,000
NKLE200
L=4,000
L=3,000
NKLE225
L=4,000
L=3,000
NKLE250
L=4,000
L=3,000
NKLE275
L=4,000
L=3,000
NKLE300
L=4,000
L=3,000
NKLE325
L=4,000
L=3,000
NKLE350
L=4,000
L=3,000
NKLE375
L=4,000
L=3,000
NKLE400
L=4,000
L=3,000
NKLE450
L=4,000
L=3,000
NKLE500
L=4,000
L=3,000
NKLA175
L=4,000
L=3,000
NKLA200
L=4,000
L=3,000
NKLA225
L=4,000
L=3,000
NKLA250
L=4,000
L=3,000
|

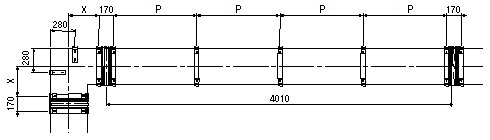

■ＮＫＬＥ１３５～３７５型（定尺４ｍ物） |

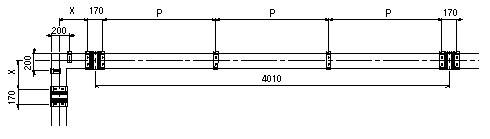

■ＮＫＬＥ４００～５００型（定尺４ｍ物） |
|
|
|
|
|
(mm) | |||||||||||||||||||
|
W (笠木幅) |
135 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 450 | 500 | ||||||
|
X |
352.5 | 345 | 332.5 | 320 | 307.5 | 295 | 282.5 | 270 | 357.5 | 345 | 332.5 | 420 | 395 | 370 | ||||||
|
P |
|
|||||||||||||||||||
